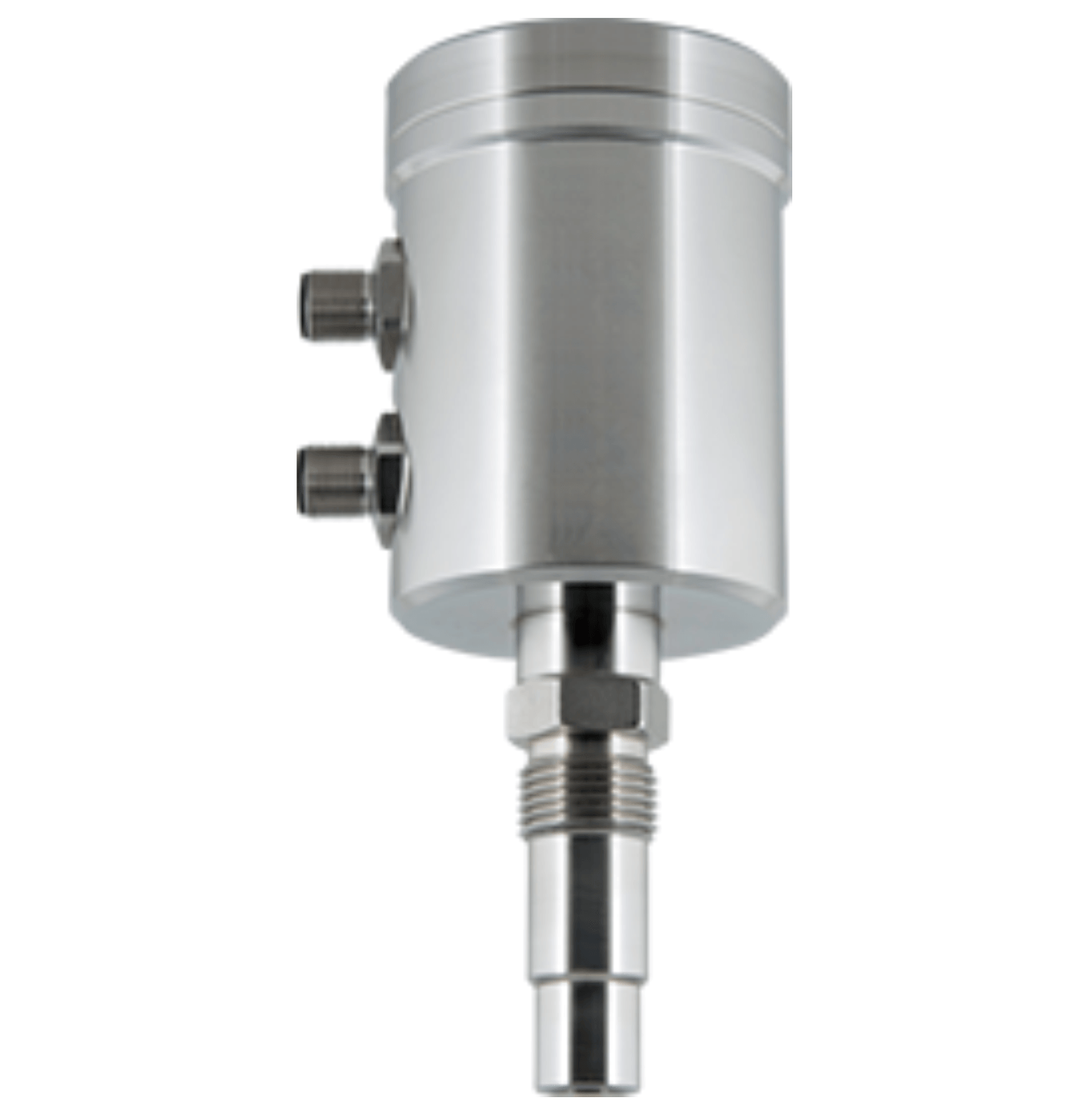

Turbidity Sensors ITM-51, ITM-51R
Instek Control • October 14, 2018
Modular Platform, Turbidity Sensors for Food, Beverage and Dairy Industries
Description
Hygienic, front flush turbidity sensor for media with a turbidity of 200…300.000 NTU equivalent in pipes from DN25 on.
- Frontflush sensor in compact and modular design
- Extended temperature and pressure range
- Independent to reflexions at small diameters or electro-polished surfaces
- No color dependency (wave length 860 nm)
- High reproducibility: ≤ 1 % of full scale
- Selectable output value (%TU, NTU, EBC)
- Extended measurement range: 200…300.000 NTU equivalent
·Front flush sensor
· Independent to reflexions at small diameters or electro-polished surfaces
· No color dependency (wave length 860 nm)
· Smallest pipe diameter: DN 25
· High reproducibility: ≤ 1% of full scale
· Switching output (switchpoint and hysteresis freely adjustable)
· Analog output 4...20 mA freely adjustable · Two ranges externally switchable
Application examples
- Phase separation products (whey-cream-milk)
- Separator control
- CIP-return line (monitoring of pre-rinse water to product leftovers)
- Yeast harvest in breweries
- Quality control
- Leakage control of filters, gasket, valves
Further Information:
- The ITM-51 is compatible to the antecessor ITM-3.
Read more.... https://www.instek.co.za/turbidity-measurement-beverage-indust
